CUSTOM PUMPER FOR SALE
1996 Seagrave Command Pumper

Sealed Bids Only - Deadline 04/10/2025 @ 17:30 EST
$35.000.00 RESERVE

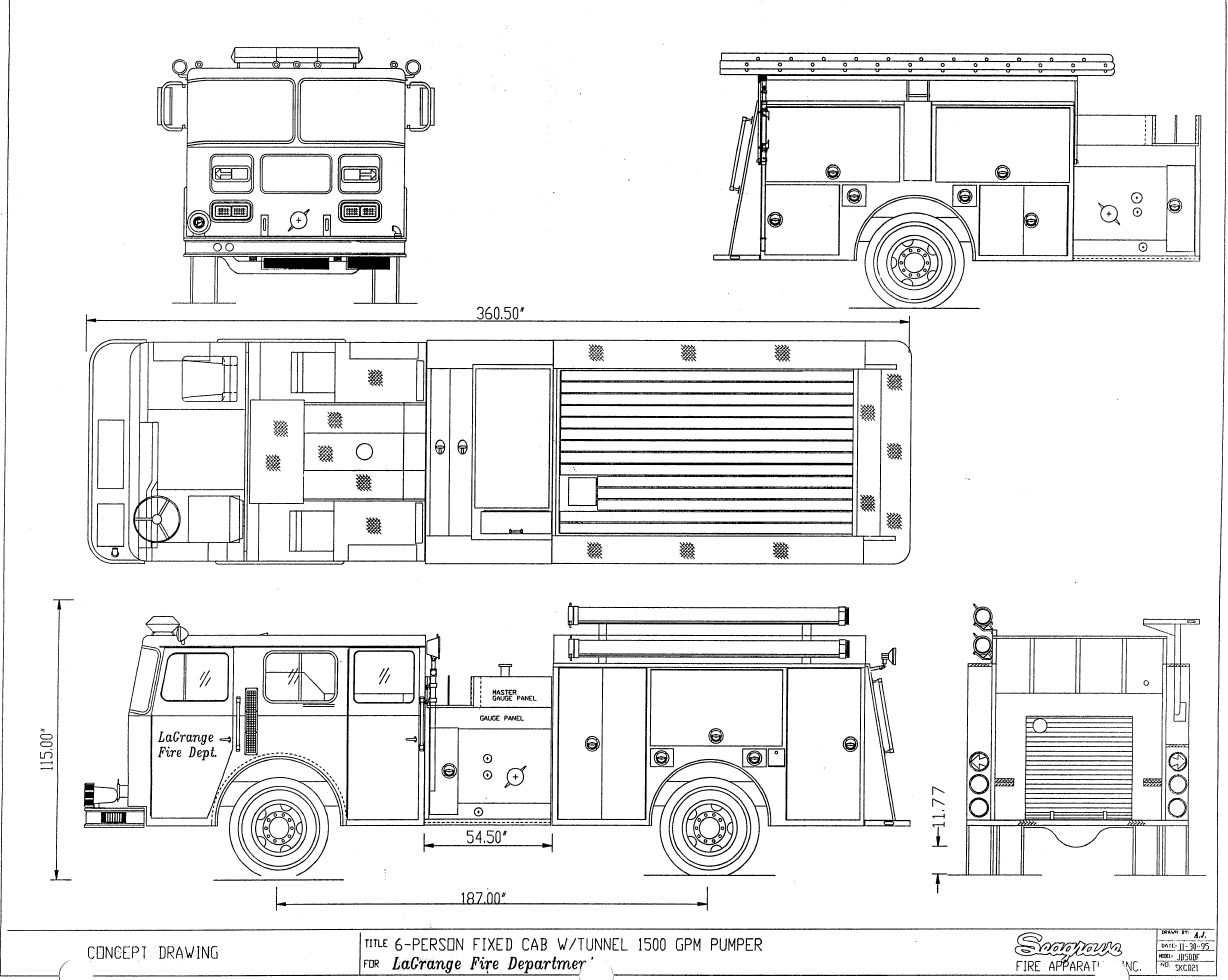

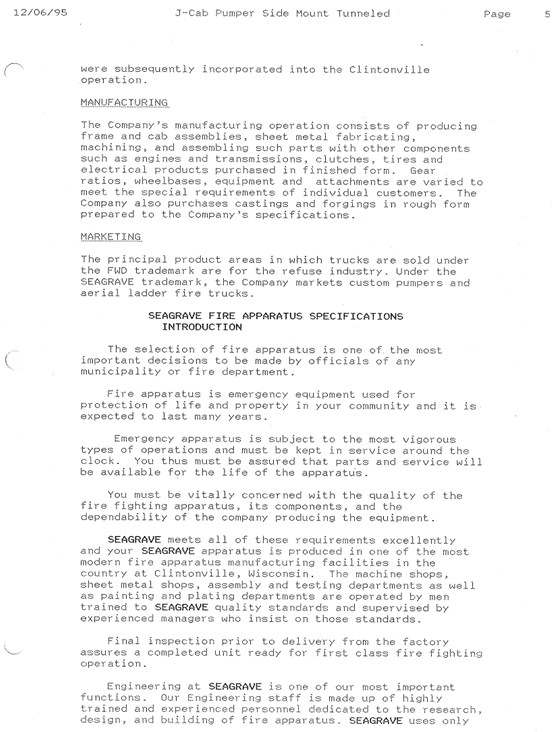

Pumper Specifications Concept Drawing Photo Gallery

GENERAL SPECIFICATIONS
  • 1996 Model Year
  • Seagrave Fire Body
  • Seagrave Commnader Cab
  • Overall Length: 360.50"
  • Overall Height: 115.00"
  • Wheelbase: 187.00"
  • Seating for 6; 3 SCBA seats
  • Mileage: 32,000 (approximate)
  • Engine Hours: 2,459 (approximate)
  • Detroit 6V92 400 HP Diesel Engine
  • Engine Brake
  • Allison HT-740 4-Speed Automatic Transmission
  • Additional equipment not included with purchase unless otherwise listed. Mileage readings may not be real-time and should be confirmed.
PUMP / TANK INFORMATION
  • Waterous CSU 1500 GPM Side-Mount Pump
  • 750 Gallon Polypropylene Tank
  • Driver's Side Discharges: (2) 2.50"
  • Crosslays/Speedlays: Crosslays: (2) 1.50"
  • Officer's Side Discharge: (1) 2.50", (1) 4.00" LDD
  • Front Bumper Discharge: (1) 2.50"
  • Driver's Side Suction: (1) 6.00"
  • Officer's Side Suction: (1) 6".00"
  • Driver's Side Inlet: (1) 2.50"
  • Officer's Side Inlet: (1) 2.50"
  • Front Suction Inlet: (1) 5.00"
  • Deluge Outlet: (1) 3.00" Riser w/TFT XG-18 Extenda-A-Gun
  • Electrically Driven Primer
ELECTRICAL
  • 7.5 KW Diesel Generator (Onboard w/Remote Start)
  • 290 AMP Niehoff A1-608 Alternator
  • Code 3 Light Bar
  • FRC Front Visor Scene Light
  • (2) Extenda-Lite Telescopong Pole Lights Behind Cab
  • Whelen Warning Light Package
OTHER INFORMATION
  • Air Conditioning
  • Hydraulic Ladder Rack
  • Ground Ladders: (1) 35' 3-Section, (1) 24' 2-Section, (1) 14' Roof, (1) 10' Folding
  • (2) Hard Suction Hose Storage Troughs
  • Backup Camera
  • Federal Q2B Siren
